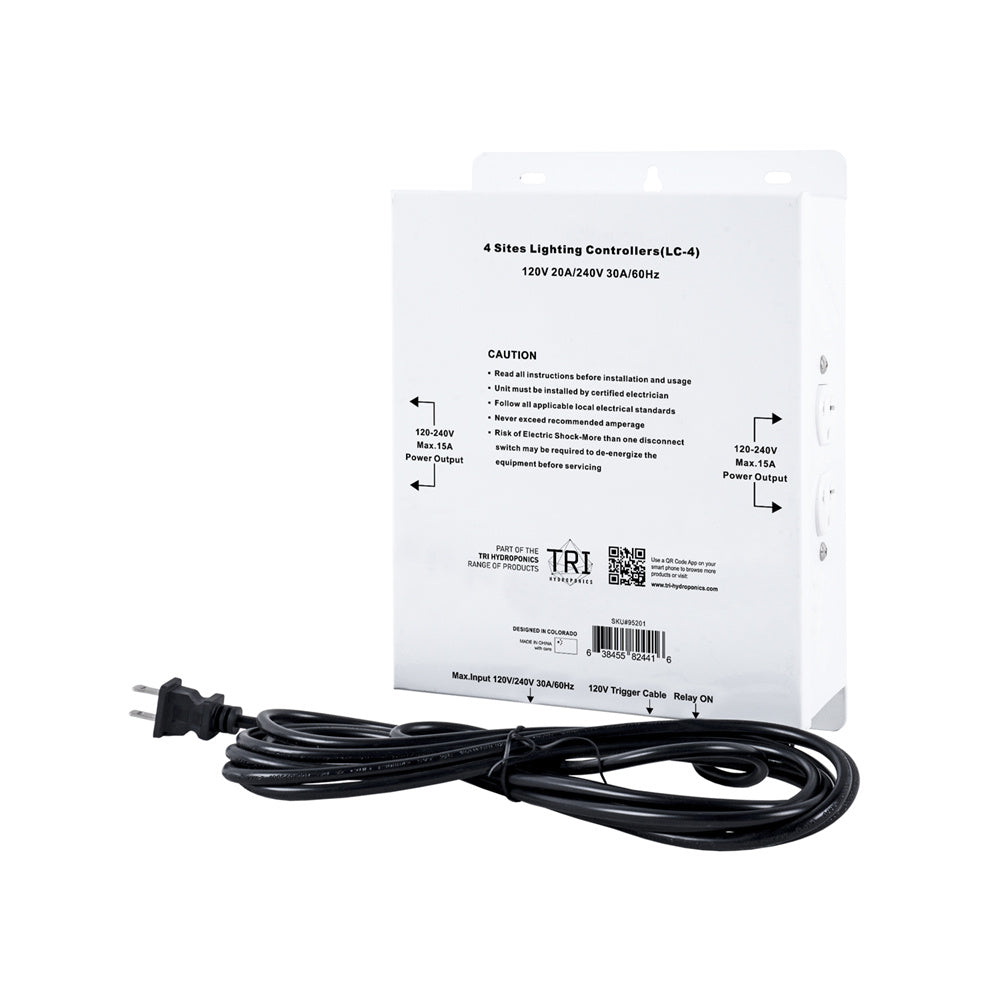

Nobel Commerical Light Controller LC-4 120V/240V

• 120v / 20A
• 240v / 30A

• Heavy-Duty Relay and UL Listed Components

• Universal 8 Outlets 120/240V 60 Hz

• Maximum Input 50 Amps Output 40 Amps

• Powder coated steel enclosure

• Commercial Grade

• 1 Year Warranty

 Production Installation

♦Insert the green or bare ground wire into the grounding terminal and secure it.
♦ Strip the insulation from the main power wires. Insert and tighten each bare wire end into the corresponding connection point on the power relay (marked as "main power connections").
Loose connections will cause relay terminals to overheat, resulting in damage. Failure to properly connect main power wires will void the warranty.
♦ Turn on the circuit breaker or connect the main power cable connection. The LC-8 will now be powered.
♦ Use a voltage meter to verify the correct voltage BEFORE plugging ballasts into the LC-8. If connected to a 240V circuit, the voltage meter should read approximately 240V If connected to a 120V circuit, the voltage meter should read approximately 120V
♦ Once all voltage has been verified, carefully reinstall the front cover.
